VAS II series pneumatic shock and collision test system has a high degree of automation and can be used for the shock test of conventional half-sine wave, postpeak sawtooth wave, and trapezoidal wave etc. The easy-to-use designed shock testing equipment is easy to operate and it is used to test product’s ability to withstand the shock of destruction in actual use, in this way we can evaluate the product’s adaptability to the shock environment and optimize the product structure strength according to the experimental data. We believe the excellent evaluation of product’s ability against shock can efficiently improve the reliability of product in use.

Features:

● Shock table
Shock table is made of high-strength aerospace aluminum, so it has excellent strength and uniformity. Table is positioned by the guide shaft in order to prevent it from rotation or deviation in other directions.

● Precision guide shaft
Chromed high-precision guide shaft and low friction sliding bearings extends the machine’s service life greatly. There is safety locking device on the guide shaft, so it is easy to replace the waveform generator and install the samples.

● Anti secondary shock brake device
VAS II brake device uses air-to-hydraulic braking system that can clamp and lock the shock table in a very short reaction time to prevent the shock table from a second shock.

● Table lifting system
Guiding type high-frequency cylinder lifting system moves up and down through precise displacement sensor continuously and smoothly to fulfil the accuracy and repeatability of shock.

● Worldwide service and support

● Shock-absorption cushion
All ETS Solutions Shock Machines have a heavy steel base with heavy duty air springs and dampers to isolate the shock energy from the floor and no special foundation is required.

● Waveform Generator
Waveform generator can generate different waves by changing different waveform generators, such as half-sine wave, trapezoidal wave and terminal-peak sawtooth wave.

● Shock control system

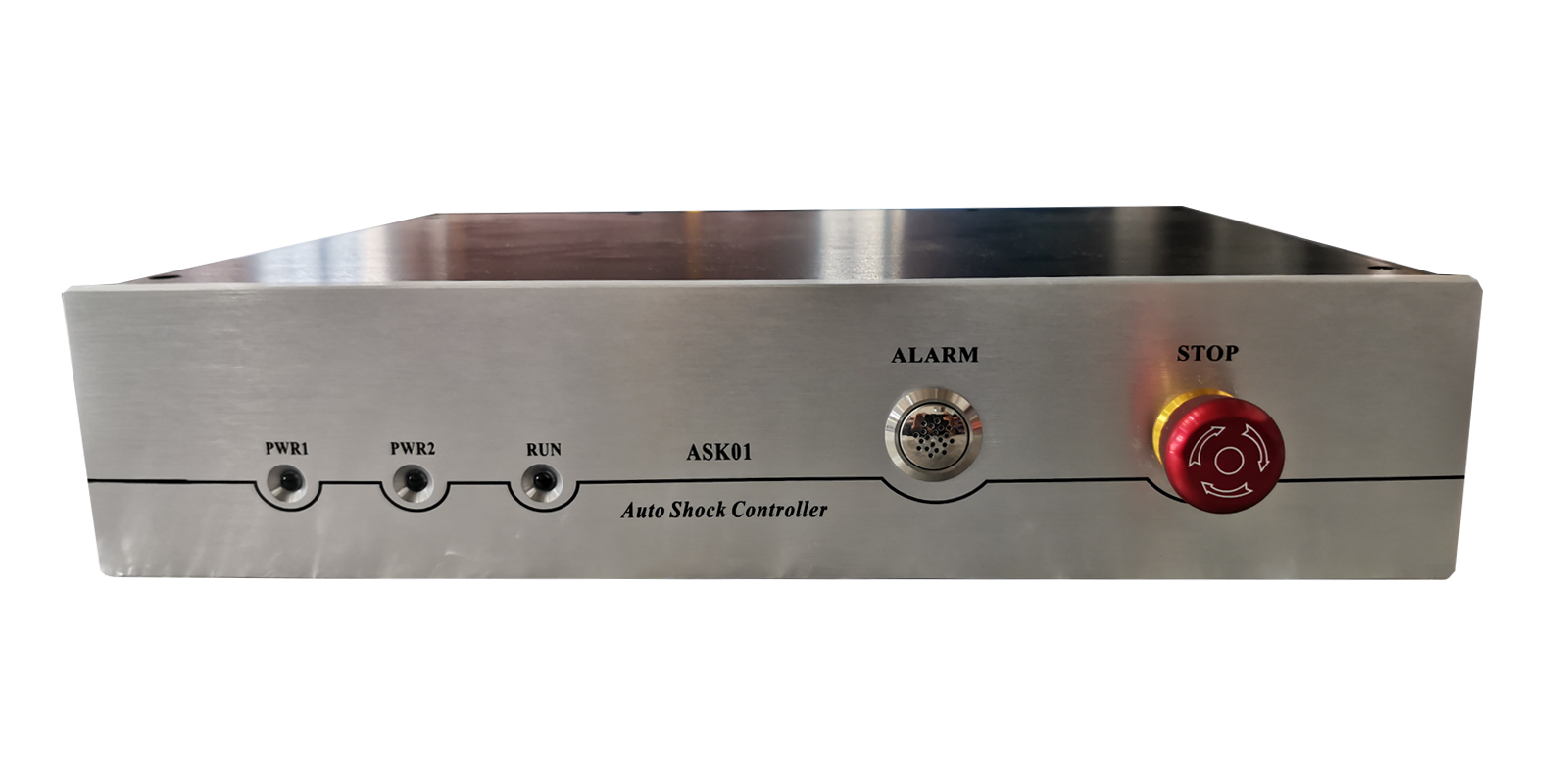

ASK01 is the shock control system based on windows operating system It has friendly control interface and combines with any measurement system to achieve automatic pneumatic shock test fully.
